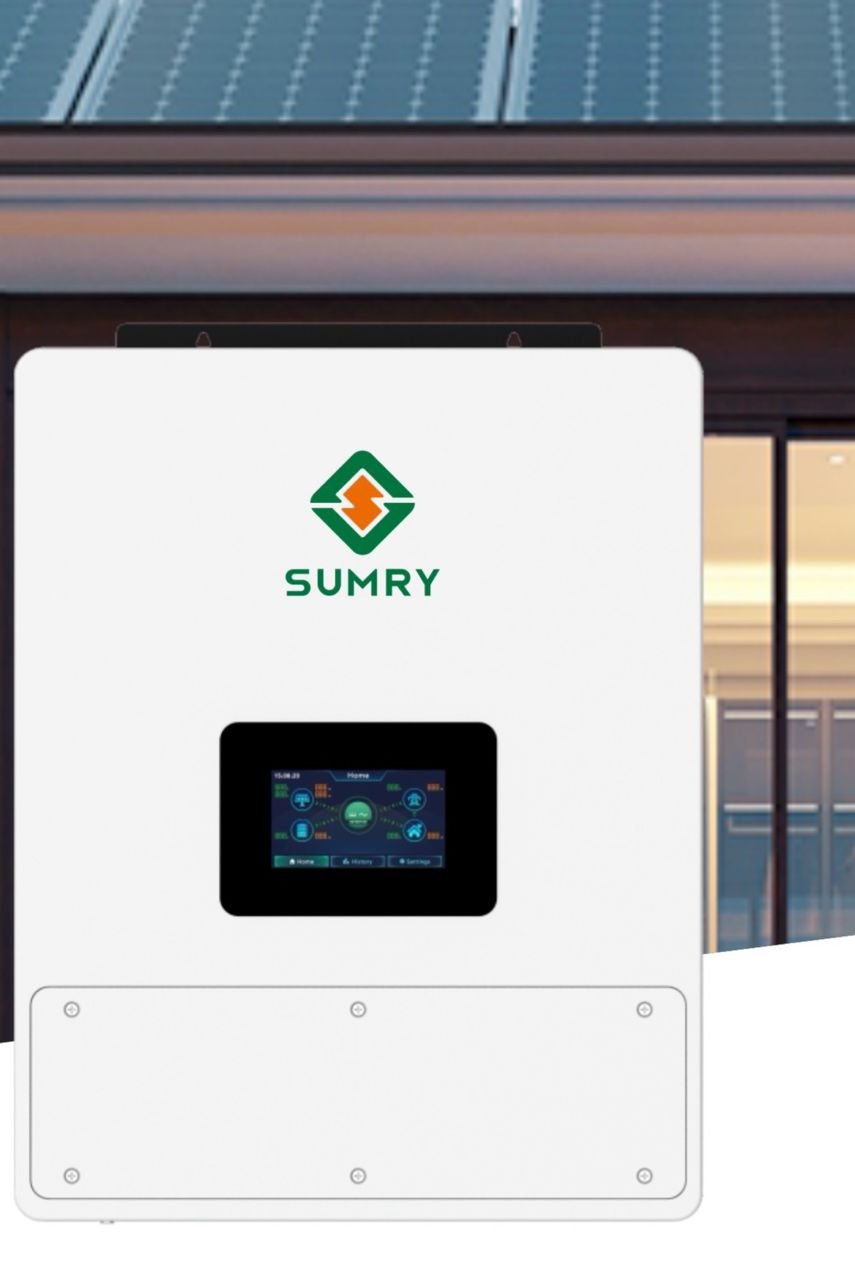

Solar inverter SGM4814KOSH2 14KW
Designed for efficiency and flexibility, it seamlessly switches between solar, battery, and grid power to ensure a constant energy supply. Perfect for reducing electricity costs and staying powered during outages
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
Free
-
Warranty 1 year
Specification
Overview
| Efficiency | High efficiency & smaller: inverter/charging efficiency up to 95.5% (mainstream ≤93%), 30% smaller, low heat for longer life |
|---|---|
| Output | Smart dual outputs: manages critical and general loads; custom 2nd output switch time& power off voltage |
| Lithium battery feature | Smart lithium battery mgmt: activates protected batteries; adjusts charging curve by power to optimize charging |
| Parallel option | Up to 9 units parallel; compatible with 3- phase/single-phase |
| Smart noise control | long-life fan (35-50dB), balances heat dissipation &quietness |
| Standard broke-code LCD (current standard) | Optional 4.3-inch capacitive touch display |
| Dustproof net | Replaceable, washable; humanized cleaning cycle reminder |
| Wireless upgrade | Supports wireless upgrade (no network needed) for personalized customization |
| Utility/PV self-start | Auto-starts when utility/PV connected (no manual restart after low-voltage battery shutdown) |
| Recommended altitude | ≤2000m (derated use at 2000m) |
| Protection | Dual-CPU control, dual safety protection, built-in gateway network module |
| AC dual-input | One for mains power, one for generator dedicacted interface |
| Smart fan control | Reduces noise/air intake, extends dustproof net&device service life |
| Microgrid anti-backflow (optional) | External CT + current sensor enables self-consumption, reducing wiring work |
| Battery-Free operation | Works with PV or mains power |
| Wifi module | The optional wifi module, support links SUNRAY cloud for anytime/anywhere energy management & monitoring |
| Bluetooth direct connect | Check device status via phone without network |
| Standard 2 independent PV inputs | Each MPPT tracking efficiency >99.5% |
| Battery communication | Customizable protocol; supports RS485/CAN, lithium /lead-acid batteries |
| Optimal operating temp | 25℃; max: 65℃ (derated above 45℃) |
| Max noise | <50dB, <40dB at night |
